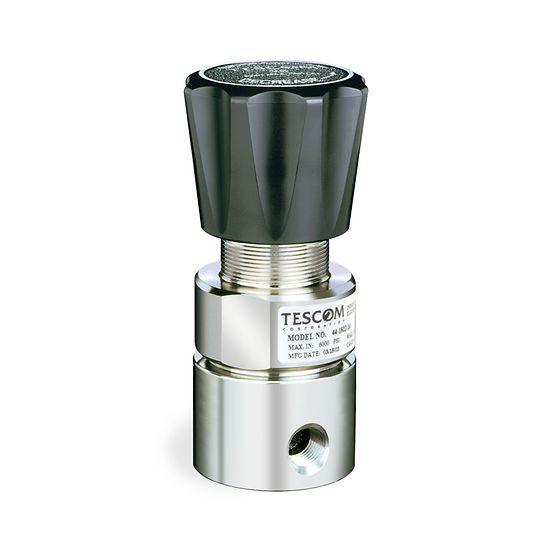

Stainless Steel Piston Induction Pressure Regulator TESCOM 44-1800 Series

Name: Stainless Steel Piston Induction Pressure Regulator TESCOM 441800 Series
Brand: TESCOM
Price: 130 USD

Brand Name : TESCOM

Model Number : 44-1800 Series

Place of Origin : china

MOQ : 1

Price : $130

Payment Terms : T/T, T/T

Supply Ability : >100

Material : Stainless Steel

Flow Capacity : Cv = 0.06

Maximum Inlet Pressure : 6000 psig

Body Type : Single Stage

Features : Panel Mountable, Non-relieving

Operating Temperature Range : -40°F to 165°F

Outlet Pressure Range : 0-500 psig

Inlet Pressure Range : 0-6000 psig

Applications : Gas Analyzers, Gas Chromatography, Gas Lasers

Connection Type : NPT

Maximum Outlet Pressure : 500 psig

Valve Type : Needle Valve

Contact Now

Product introduction:

The TESCOM 44-1800 series piston induction pressure regulator is a versatile solution designed to meet the needs of general test benches and industrial equipment. Available in brass or 316 stainless steel, it can handle inlet pressures of up to 2500 psig (172 bar), ensuring reliable performance in various settings.

Key Features:

Cost-Effective: Offers a budget-friendly option without sacrificing quality or functionality.
Compact Design: Its compact structure allows for easy installation in limited spaces.
Reliable Piston Sensing: The piston sensing design ensures accurate and stable pressure regulation.
Adjustable Outlet Pressure: The outlet pressure can be adjusted to meet specific requirements.
Material Options: Choose between brass for general applications or 316 stainless steel for more corrosive environments.
Emission Options: Provides flexibility in emission settings to suit different applications.
Port and Material Configurations: Supports a variety of ports and material configurations for seamless integration.

Technical Specifications:

Inlet Pressure: Up to 2500 psig (172 bar)
Material: Brass or 316 stainless steel
Operating Temperature: [Specify the range if available]
Port Types: [List available port types]

Applications:

General test benches in laboratories and research facilities.
Industrial equipment in manufacturing, oil and gas, and other industries.

Why Choose the 44-1800 Series?

It combines affordability, reliability, and flexibility, making it an ideal choice for a wide range of applications.
The variety of options allows for customization to meet specific needs.

44-1800 series TESCOM industrial voltage regulator product specifications

Parameter	Value
High Pressure Rating	Inlet pressure up to 6000 psig / 414 bar
Wide Outlet Pressure Range	Adjustable outlet pressure: 0–2500 psig / 0–172 bar
Quality Materials	- Body/Bonnet: Brass or 316 stainless steel
	- Seat: Teflon®
	- O-Ring: Viton-A®
	- Support Ring: High-pressure-rated materials
Wide Operating Temperature Range	-15°F to 165°F / -26°C to 74°C
Compact End Hole Design	1/4" NPTF port size/type, optimized for easy installation and reduced fluid resistance
Good Circulation Capacity	Non-emission and self-emission types ensure fluid transmission
Lightweight Design	Weight: 2 lb / 0.9 kg (without pressure gauge)

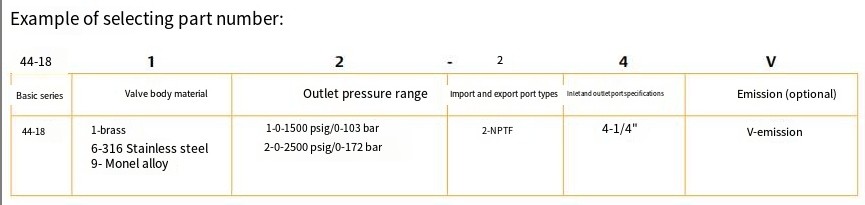

44-1800 series TESCOM industrial voltage regulator selection reference
